Wireless spy Camera

 Portable Wireless Spy Camera

What you need:
- Case of some sort
I recommend a pelican case because of the durability and authenticity.


- Wireless camera set

- Small Lcd screen

- 9 volt rechargeable battery(3)
- 9volt battery adaptor (2)
- Switch(2)

-male-male rca cable (2)

- Tools
Wire strippers, wire cutters,

- Sandpaper

Note* you can find all these objects in our online shop.

STEP 1: Wiring.

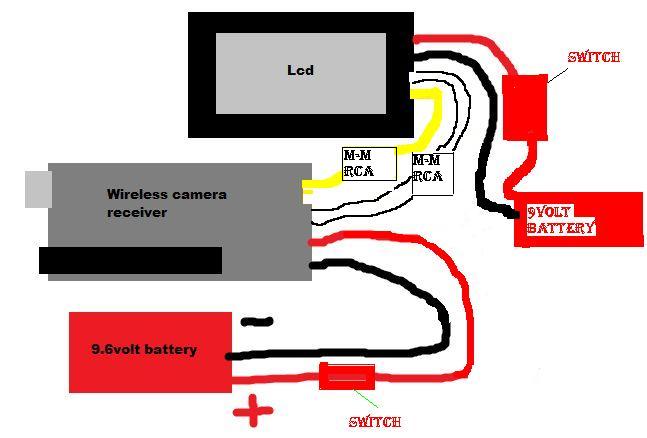

The wiring diagram below shows how to hook up the power and video its pretty simple.you need to cut off the plug connector that comes with the wireless camera receiver and then throw the plug away or keep it the on the cut off mouth use the battery and attach it to the connector.. so instead of connecting it to a wall socket connect it to  the battery.

STEP 2: Layout.

Now you need to figure out how you are going to lay everything out.layout every thing so the switch is not covered by any wiresand you have easy access to the switch.

STEP 3: Prep.

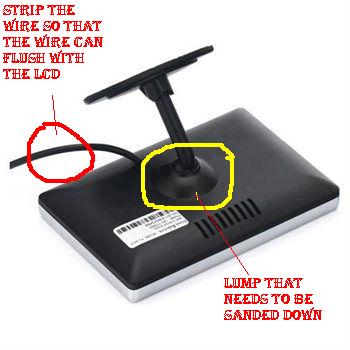

For the Lcd screen there is a big lump that needs to be sanded down so it sits flush on the box lid. Also cut the plastic to that the wire is flush with the Lcd.

STEP 4: Glue it all together.

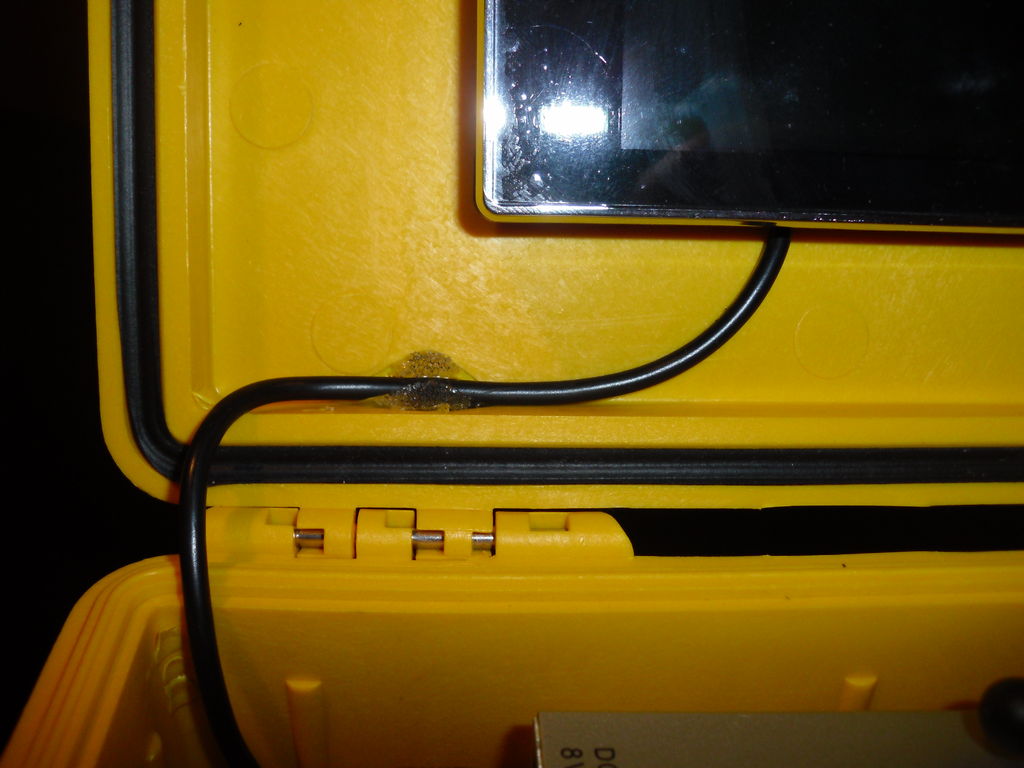

Now you want to glue everything, I used hot glue and it worked perfect. So glue the screen to the lid and I glued the wire so it would stay in the corner. I recommend not gluing the receiver or foam but it's up to you. Glue down your terminal block if you used one. Glue your switch.also glue the lcd to the lid inside so it looks like this.

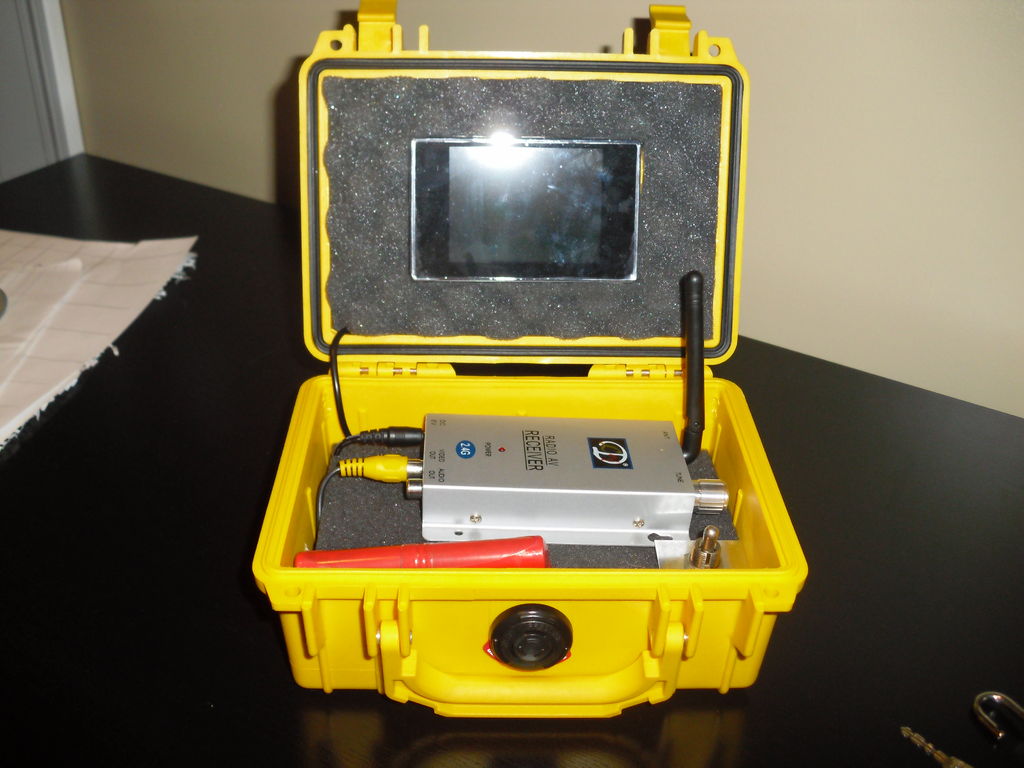

READY ALL DONE.

all you need now is a disgiuse you can put it somewhere or in your shirt so no one can see it and then from the breifcase someone can operate it and watch your movements.
